Condition: Used - Good - Brown/White Box

Warranty Term: 30 Days
Warranty Provider: Distributor

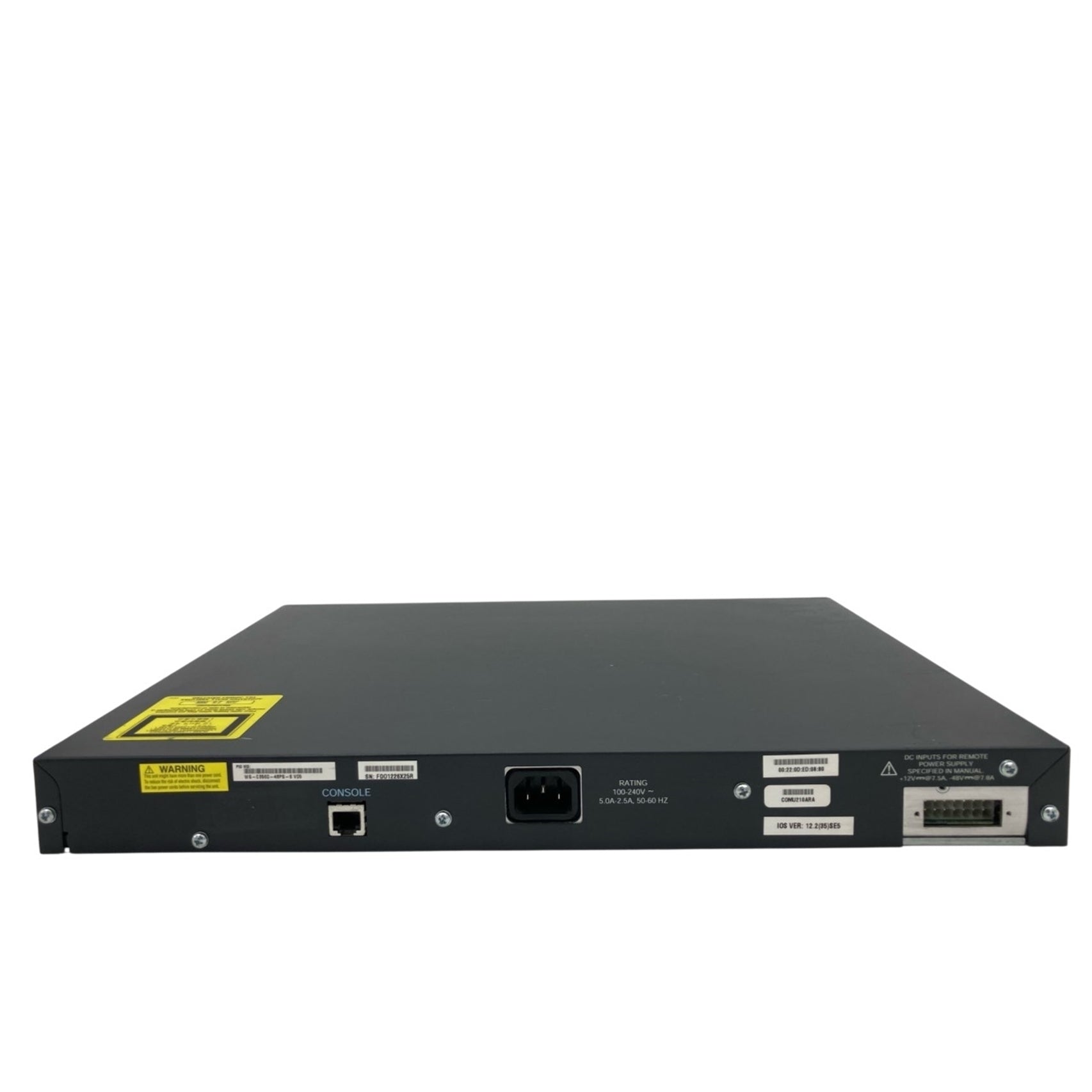

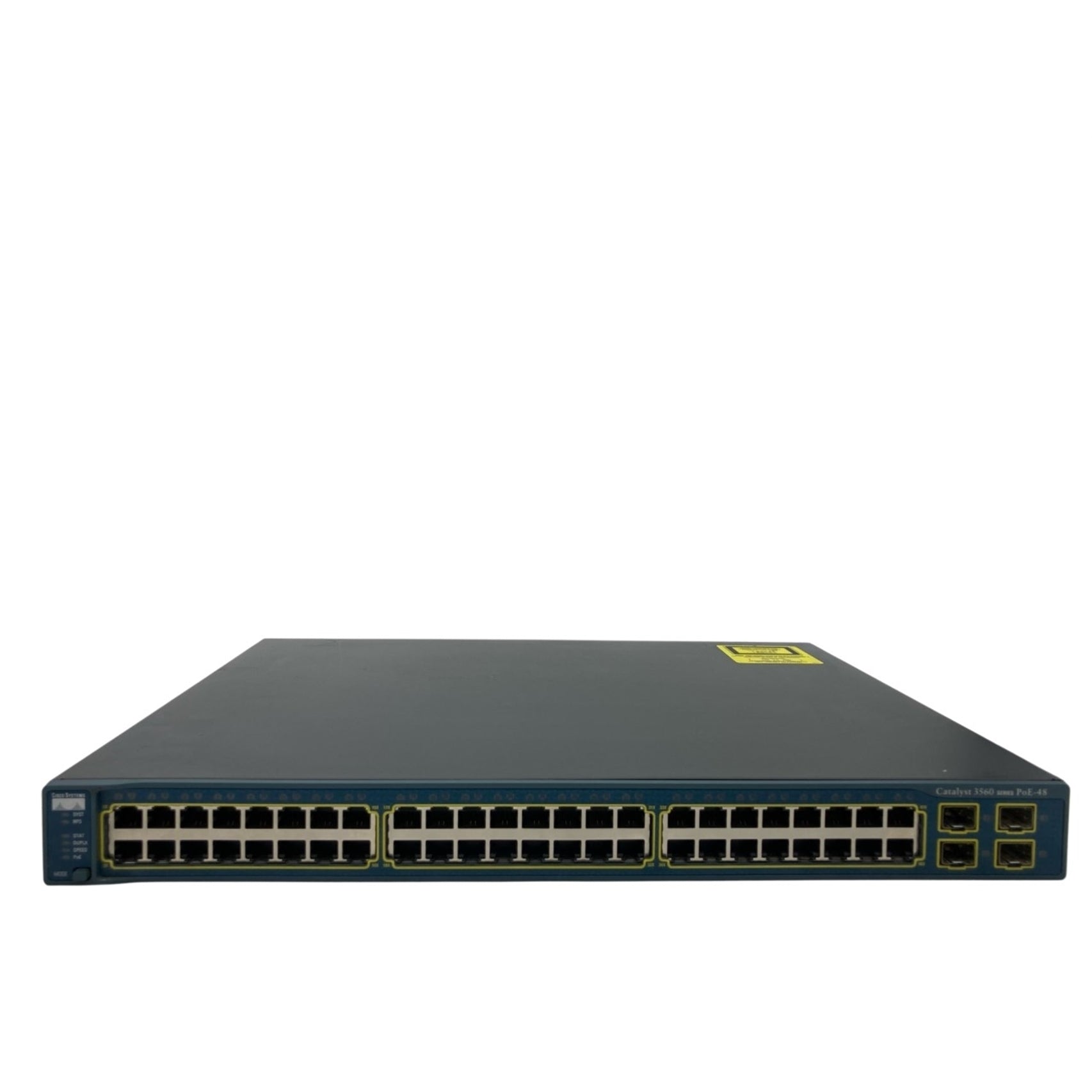

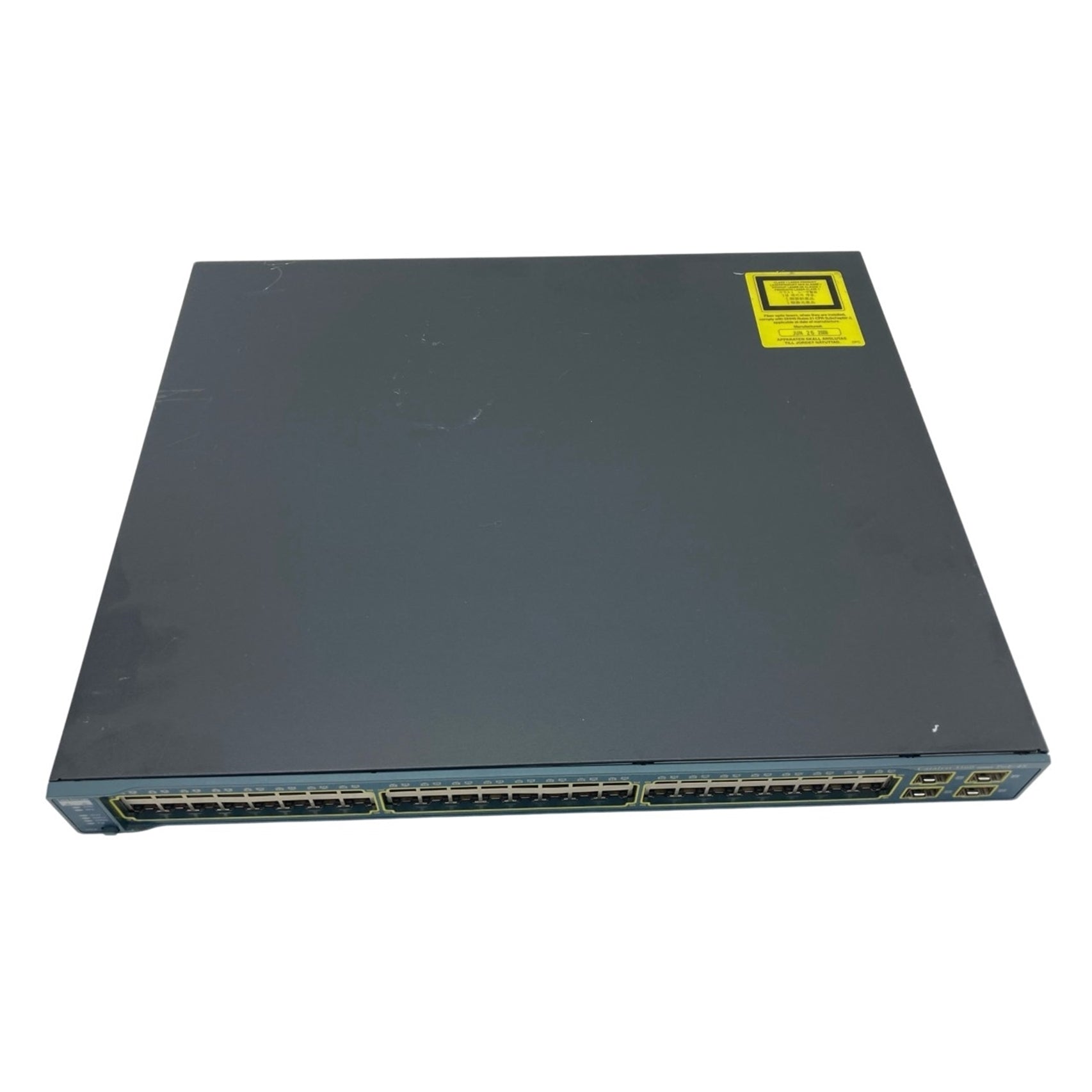

WS-C3560-48PS-S CATALYST 3560 48-PORT 10/100 POE SWITCH (Used - Good)

Item sold as pictured, in good, used working condition. Includes rack mount kit and AC power cable. WS-C3560-48PS-S Overview Cisco Catalyst 3560 Series is a line of fixed-configuration, enterprise-class switches that include IEEE 802.3af and Cisco prestandard Power over Ethernet (PoE) functionality in Fast Ethernet and Gigabit Ethernet configurations. The Cisco Catalyst 3560 is an ideal access layer switch for small enterprise LAN access or branch-office environments, combining both 10/100/1000 and PoE configurations for maximum productivity and investment protection while enabling the deployment of new applications such as IP telephony, wireless access, video surveillance, building management systems, and remote video kiosks. • 48 Ethernet 10/100 ports and 4 SFP-based Gigabit Ethernet ports • 1RU fixed-configuration, multilayer switch • Enterprise-class intelligent services delivered to the network edge • IEEE 802.3af and Cisco prestandard Power over Ethernet • IP Base software feature set (IPB) WS-C3560-48PS-S Specifications Topology: Ethernet (10/100BaseTX), Ethernet (10/100/1000 Ethernet PortBaseT),Gigabit Ethernet (SFP) Maximum Port density: 48 10/100 PoE ports Uplinks: 4 SFP ports Modular/Expansion Slots: n/a Architecture: Layer 2 Switching (basic connectivity), Layer 2 Switching (intelligent services), Layer 3 Switching, Voice Enabled Form Factor: Fixed, Rack Mountable, Standalone/Clustering Dimensions: 1.73 x 17.5 x 14.85 in. DRAM: 128 MB Features Specialized Service Modules: n/a Hardware Redundancy: External Redundant Power Supply High Availability/Resilliency:PVST, Broadcast Suppression, Unicast Suppression, Mulitcast Suppression, Spanning Tree, Portfast, Uplink Fast, Backbone Fast, 802.1s, 802.1w, HSRP Management Management features: SPAN, RSPAN, CiscoView, Cisco Discover Protocol (CDP), Virtual Trunking Protocol (VTP), Telnet Client, BOOTP, TFTP, CiscoWorks, CWSI, RMON, SNMP, Clustering, Web-Based Management Scalability WAN Interface Support: n/a Throughput: 13.1 Mpps Backplane Capacity: 17.6 Gbps Number of VLANs: 4k, 1024

Features:

• • 48 10/100 PoE ports
• • 4 SFP ports
• • Architecture: Layer 2 Switching (basic connectivity), Layer 2 Switching (intelligent services), Layer 3 Switching, Voice Enabled
• • DRAM: 128 MB

Whats in the Box?

• Cisco WS-C3560-48PS-S 48-Port Ethernet Switch
• Rack Mount Kit
• AC Power Cable

Specifications:

General Information

• Color - Generic: Grey
• Model Number: WS-C3560-48PS-S
• Item Dimensions - H x W x D (IN): 2 x 18 x 13
• Has Firewall Built-in?: NO
• Network Device Form Factor: 1U
• Switch Hub Type: Not Applicable
• Item Weight (LBS): 11
• EPEAT Level: Not Applicable

Inputs/Outputs

• Number of Ports: 48
• NIC Speed: 10/100Mbps
• Network Connectors: RJ45, SFP
• Wireless Network Compatibility: Not Applicable
