Condition: Refurbished - Brown/White Box

Warranty Term: 30 days
Warranty Provider: Distributor

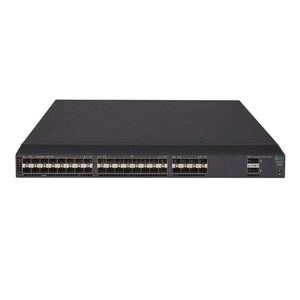

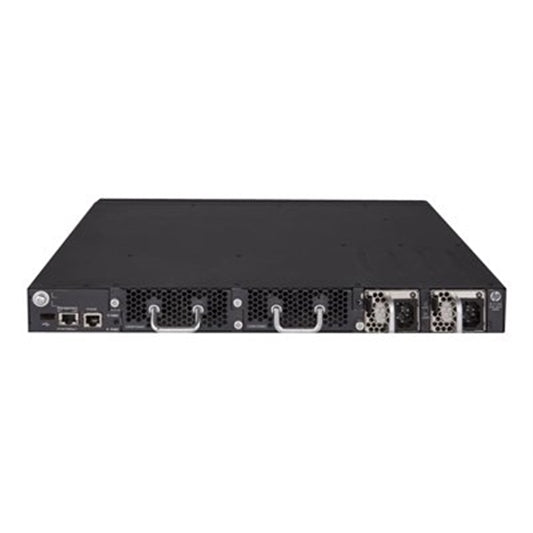

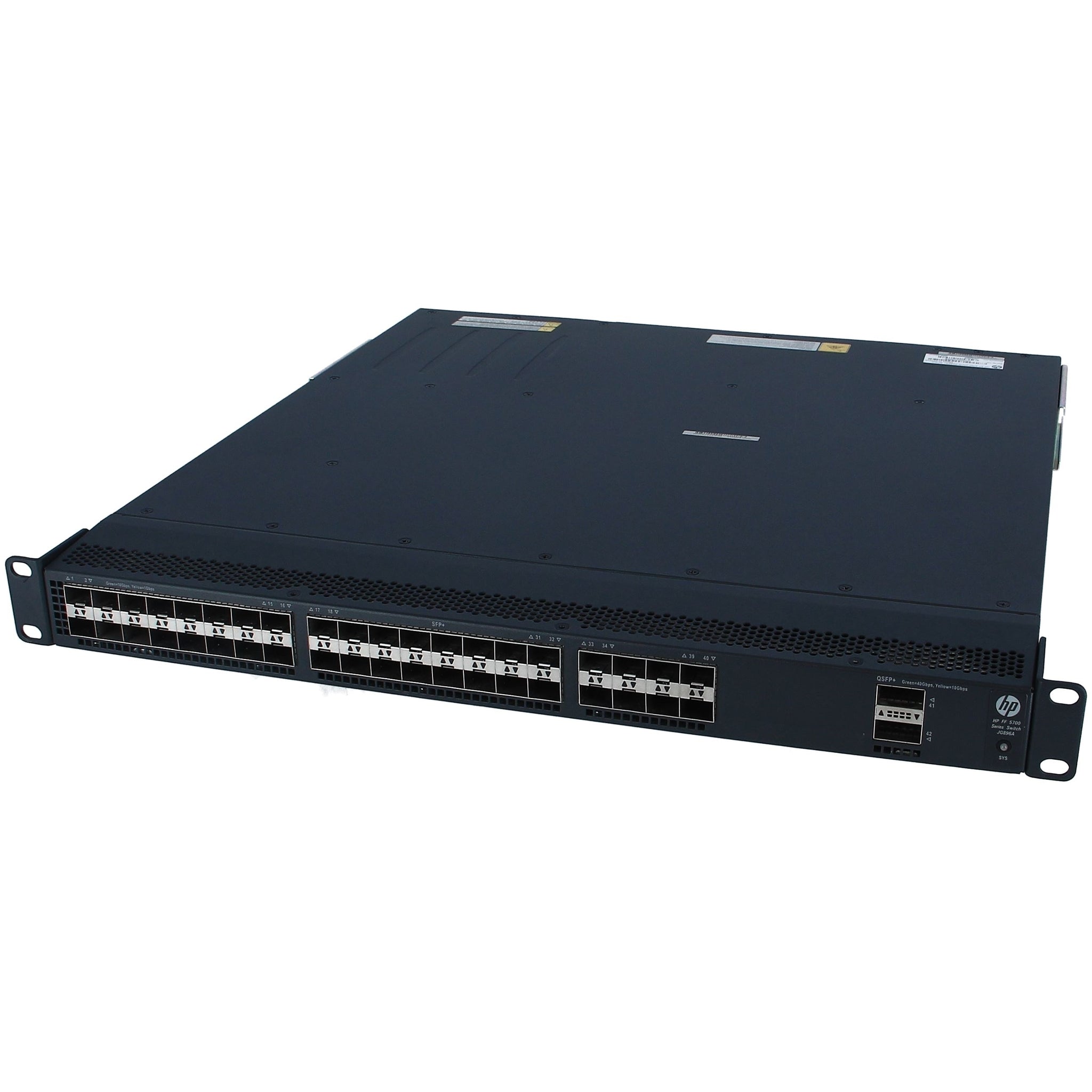

HP JG896A Enterprise FlexFabric 5700-40XG-2QSFP+ Switch (Refurbished)

Expand Your Data Center Network with Confidence The HPE FlexFabric 5700 Switch Series expands your enterprise network by adding local switching capacity for better scalability, so that you can support more customers. Up to thirty (30) HPE FlexFabric switches can be added to the network and managed by one Controlling Bridge (CB) switch improving server connectivity. The FlexFabric 5700 Switch Series gives you choices that fit your budget and environment by offering 1/10GbE ports supporting SFP and BASE-T with 10/40GbE uplinks. High-Performance Data Center Switching The HPE FlexFabric 5700 Switch Series delivers up to 960Gbps switching capacity for the most demanding applications. Provides local switching and participates in the network unlike competing port multiplexers. Low latency, under 1.5us 10GbE latency, provides improved throughput and fewer lost packets. Business Agility and Resilience with Comware 7 The HPE FlexFabric 5700 Switch Series delivers IRF <50msec convergence time enabling faster application response time. The 5700 Switch Series supports spine/leaf IRF to enhance network agility with ECMP and faster convergence. In Service Software Update (ISSU) enables high availability with updates accomplished without a reboot or power cycle, in the background. Simplicity and Lower TCO The HPE FlexFabric 5700 Switch Series simplifies switch management by up to 88% with IRF. No hidden software licensing costs, all OS features included with switch purchase. Automate tedious tasks with software defined network (SDN) and reclaim wasted resources. Product Differentiator (long)The HPE Flex Fabric 5700-40XG-2QSFP+ Switch has 40 1G/10G SFP+ and 2 QSFP+-ports, dual hot-pluggable power supplies and fan trays, and ultra-low-latency. It is ideally suited for deployment at the server access layer in large enterprise data centers Power Consumption Description162 W (maximum) Input Voltage100 - 240 VAC, rated -48 to -60 VDC, rated (depending on power supply chosen) External I/O Ports(40) fixed 1000/10000 SFP+ ports (2) QSFP+ Latency10 Gbps Latency: < 1.5 µs Routing/switching Capacity960 Gbps Stacking CapabilitiesIRF 9 switches Throughputup to 714.2 Mpps Memory and Processor512 MB flash Packet buffer size: 9 MB 2 GB SDRAM Management FeaturesIMC - Intelligent Management Center Command-line interface Out-of-band management SNMP manager Telnet FTP Detailed Product DescriptionHPE FlexFabric 5700 switch with 40 10GbE ports and 2 quad SFP+ ports Weight (imperial)22.05 lb Weight (metric)10 kg Product Dimensions (imperial)17.32 x 18.11 x 1.72 in Product Dimensions (metric)43.99 x 46 x 4.37 cm

Features:

• Ports: 40 fixed 1000/10000 SFP+ ports2 QSFP+
• Memory/processor: 512 MB flash, 2 GB SDRAM; packet buffersize: 9 MB
• Throughput: 714.2 Mp/s
• Routing/Switching capacity: 960 Gb/s

Whats in the Box?

• HP JG896A FlexFabric 5700-40XG-2QSFP+ Switch, Rack Mount Kit, AC Power Cable

Specifications:

General Information

• Model Number: JG896A
• Item Dimensions - H x W x D (IN): 2 x 18 x 18
• Has Firewall Built-in?: NO
• Network Device Form Factor: 1U
• Switch Hub Type: Not Applicable
• Item Weight (LBS): 22
• Color - Generic: Black
• EPEAT Level: Not Applicable

Inputs/Outputs

• Number of Ports: 42
• NIC Speed: 10Gbps
• Network Connectors: SFP
• Wireless Network Compatibility: Not Applicable
