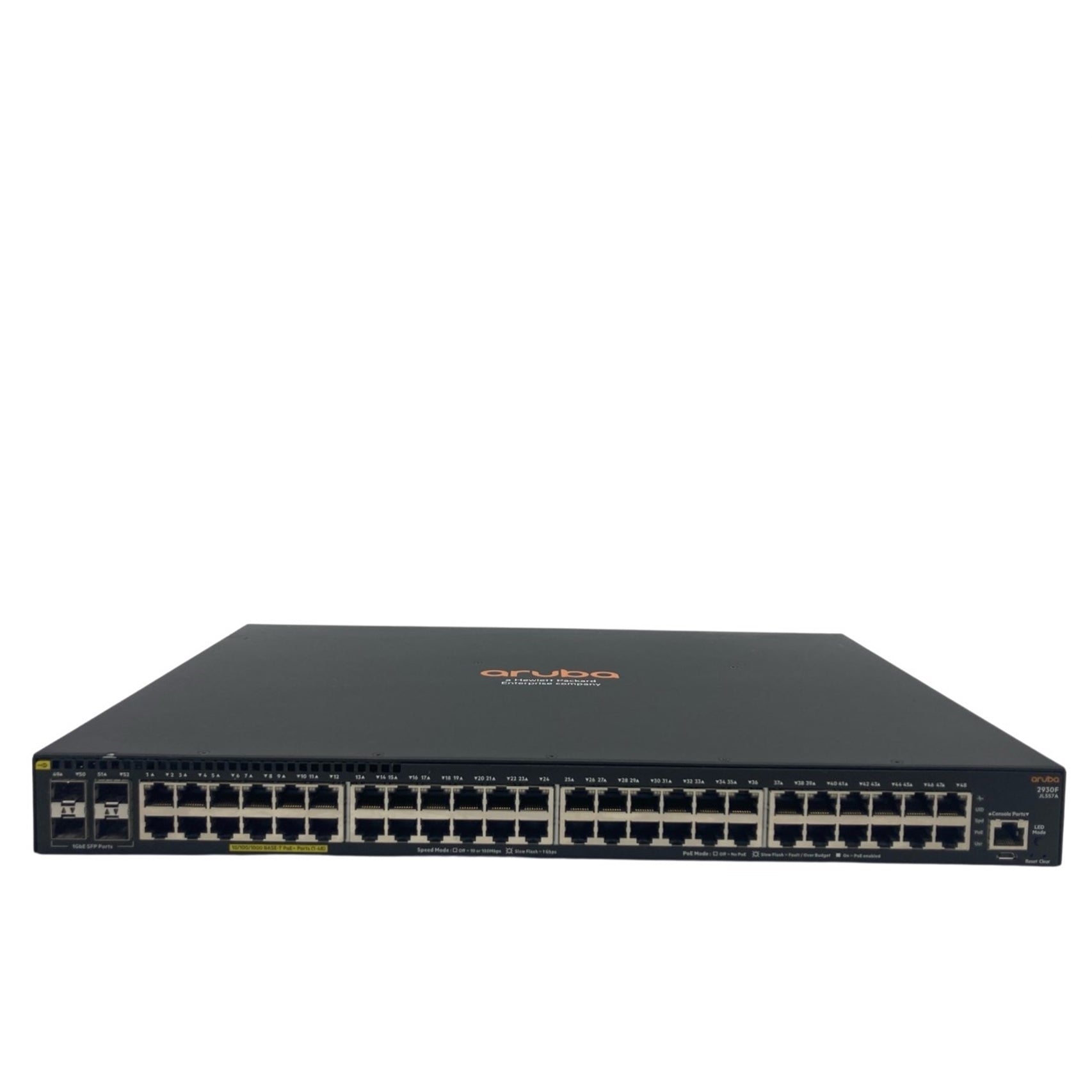

HP Aruba JL557A 2930F 48G PoE+ 4SFP 740W Switch (Used - Good)
HP Aruba JL557A 2930F 48G PoE+ 4SFP 740W Switch (Used - Good)
HP Aruba JL557A 2930F 48G PoE+ 4SFP 740W Switch (Used - Good)

HP Aruba JL557A 2930F 48G PoE+ 4SFP 740W Switch (Used - Good)

  • Save $675

Condition: Used - Good - Brown/White Box

Warranty Term: 30 Days
Warranty Provider: Distributor

HP Aruba JL557A 2930F 48G PoE+ 4SFP 740W Switch (Used - Good)

Item sold as pictured, in good, used working condition. Listing includes rack mount kit and AC power cable. JL557A Overview This JL557A has 48x 10/100/1000 PoE+ ports and 4x 1000/100 SFP transceiver slots for uplink connectivity. PoE+ is supported with a power budget of 740 Watts. The Aruba 2930F Switch Series is designed for customer creating digital workplaces optimized for mobile users. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F delivers performance and value with support for RIP routing, Access OSPF, 10GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing. JL557A Specification • Type: Aruba 2930F 48G PoE+ 4SFP 740W Switch • Ports: (48) RJ-45 autosensing 10/100/1000 PoE+ ports; (4) SFP • Memory and processor: Dual Core ARM Coretex A9 @ 1016 MHz; 1 GB DDR3 SDRAM; Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress; 4 GB eMMC • Management: Aruba AirWave, Central Network Management, IMC - Intelligent Management Center, Command-line interface, Web browser, Configuration menu, SNMP manager, Telnet, RMON1, FTP, Out-of-band management (serial RS-232C or micro USB) • 1000 Mb Latency: < 3.8 μs (64-byte packets) • 10 Gbps Latency: < 1.6 μs (64-byte packets) • Throughput: up to 112.0 Mp/s • Switching capacity: 176 Gb/s • Dimensions: 1.73 x 17.42 x 12.77 in • Input voltage: 100-127 / 200-240 VAC, rated • Power consumption: 980 W (maximum) • Heat dissipation: 420.9 BTU/hr (444.1 kJ/hr)

Features:

  • Ports: (48) RJ-45 autosensing 10/100/1000 PoE+ ports; (4) SFP
  • Memory and processor: Dual Core ARM Coretex A9 @ 1016 MHz;
  • Throughput: up to 112.0 Mp/s
  • Switching capacity: 176 Gb/s

Whats in the Box?

  • HP Aruba JL557A 2930F 48G PoE + 4 xSFP Switch
  • Rack Mount Kit
  • AC Power Cable

Specifications:

General Information

  • Color - Generic: Black
  • Model Number: JL557A
  • Item Dimensions - H x W x D (IN): 2 x 18 x 14
  • Has Firewall Built-in?: NO
  • Network Device Form Factor: 1U
  • Switch Hub Type: Not Applicable
  • Item Weight (LBS): 12
  • EPEAT Level: Not Applicable

Inputs/Outputs

  • Number of Ports: 48
  • NIC Speed: 10/100/1000Mbps
  • Network Connectors: RJ45, SFP
  • Wireless Network Compatibility: Not Applicable
