Condition: Used - Good - Brown/White Box

Warranty Term: 30 Days
Warranty Provider: Distributor

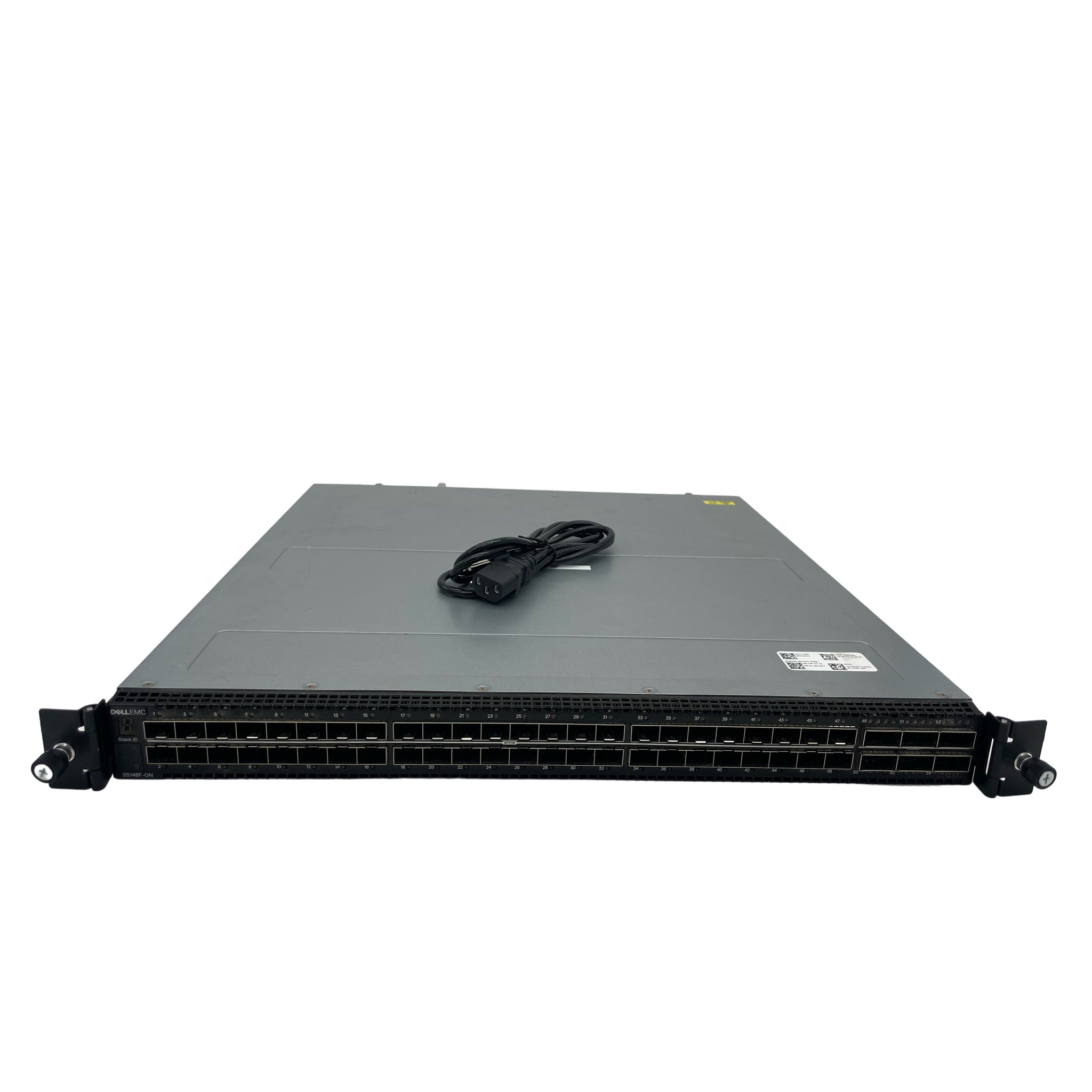

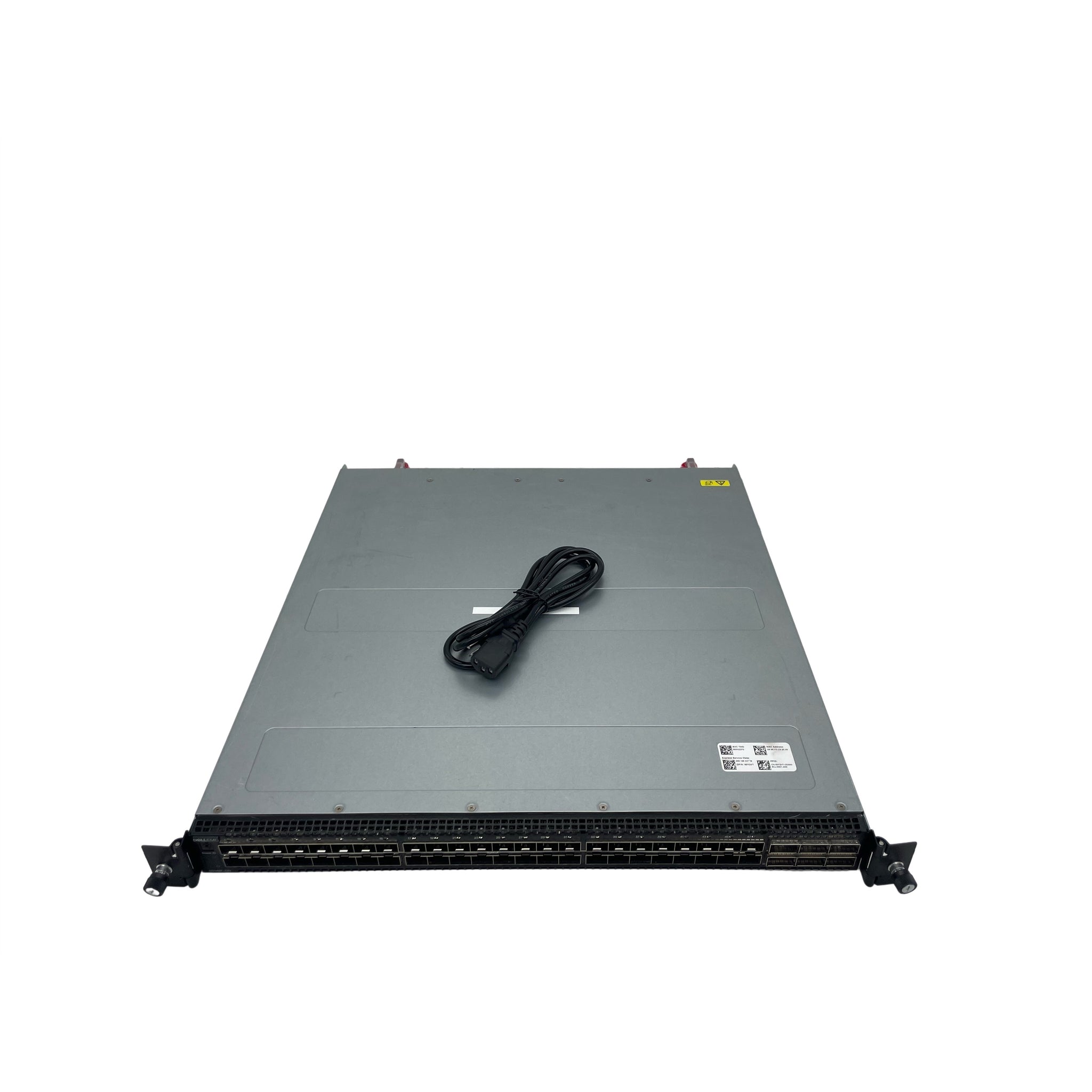

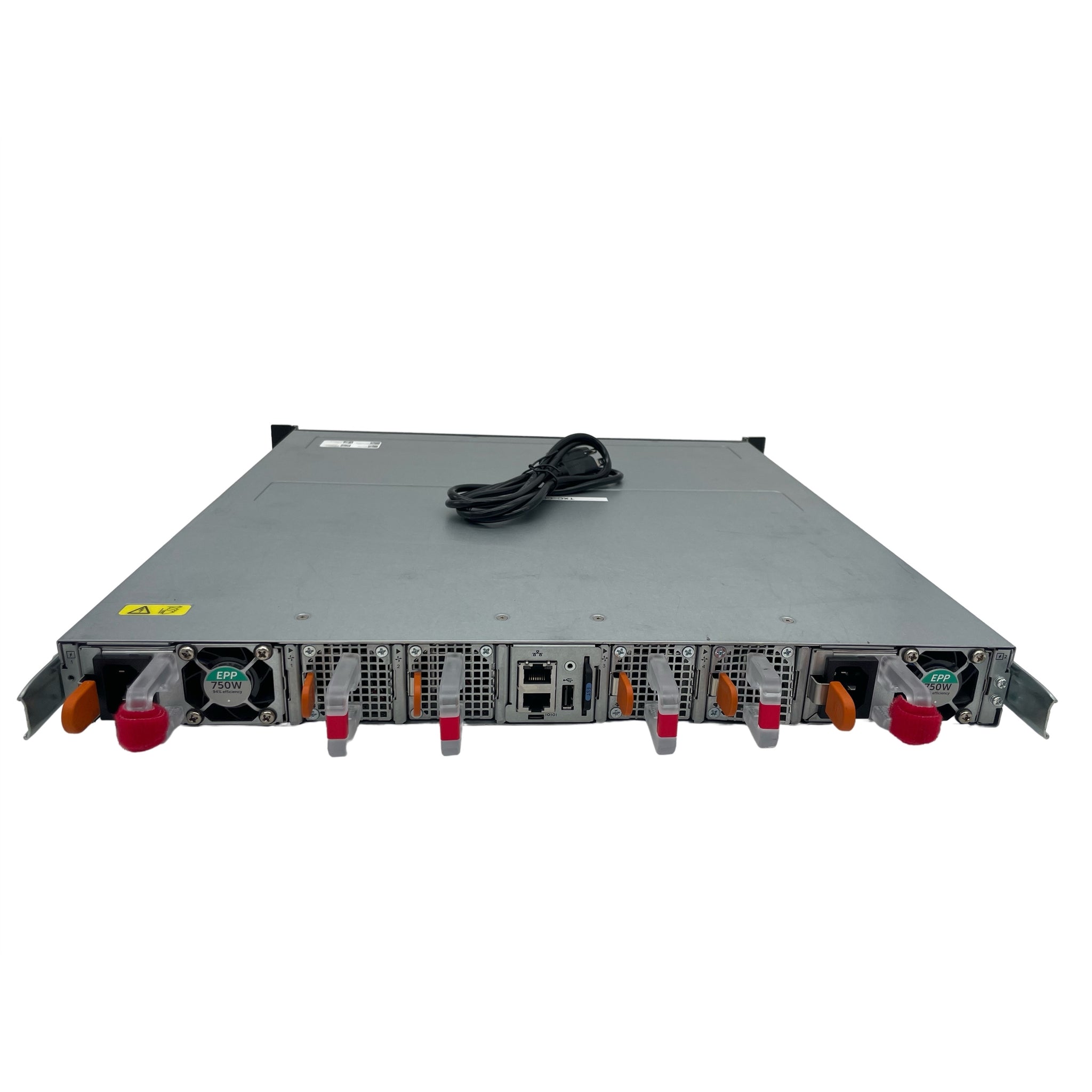

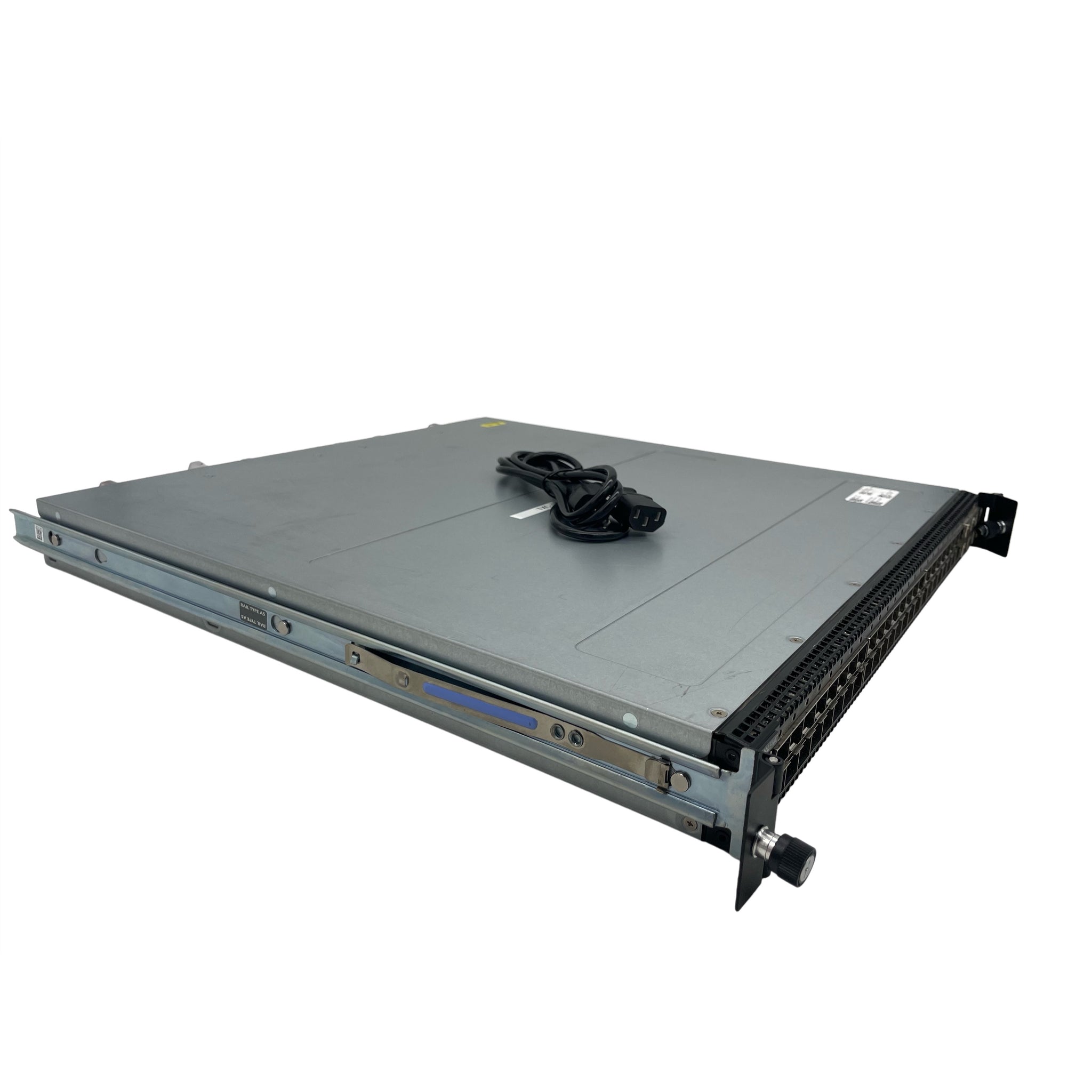

DELL S5148F-ON OS10-Enterprise Perpetual/Unlimited 25G SFP Switch (Used - Good)

DELL S5148F-ON 48-Port 25G SFP Switch w/ 6 100G Uplink Ports The Dell EMC S5148 switch is an innovative, future-ready Top-of-Rack (ToR) open networking switch providing excellent capabilities and cost-effectiveness for the enterprise, mid-market, Tier2 cloud and NFV service providers with demanding compute and storage traffic environments. The S5148F-ON 25GbE switch is Dell EMC’s latest disaggregated hardware and software data center networking solution that provides state-of-the-art data plane programmability, backward compatible 25GbE server port connections, 100GbE uplinks, storage optimized architecture, and a broad range of functionality to meet the growing demands of today’s data center environment now and in the future. The compact S5148F-ON model design provides industry-leading density with up to 72 ports of 25GbE or up to 48 ports of 25GbE and 6 ports of 100GbE in a 1RU form factor. Using industry-leading hardware and a choice of Dell EMC’s OS10 or select 3rd party network operating systems and tools, the S5148FON Series offers flexibility by provision of configuration profiles and delivers non-blocking performance for workloads sensitive to packet loss. The compact S5148F-ON model provides multi rate speed enabling denser footprints and simplifying migration to 25GbE server connections and 100GbE fabrics. Data plane programmability allows the S5148F-ON to meet the demands of the converged software defined data center by offering support for any future or emerging protocols, including hardwarebased VXLAN (Layer 2 and Layer 3 gateway) support. Prioritybased flow control (PFC), data center bridge exchange (DCBX) and enhanced transmission selection (ETS) make the S5148F-ON an excellent choice for DCB environments. The Dell EMC S5148F-ON model supports the open source Open Network Install Environment (ONIE) for zero touch installation of alternate network operating systems.

Features:

• 6 100G Uplink Ports
• 48 25G SFP Ports
• SFP Ethernet Switch
• OS10 Enterprise Perpetual Switch

Whats in the Box?

• S5148F-ON
• Rack Mounts
• Power Cable

Specifications:

General Information

• Model Number: S5148F-ON
• Item Dimensions - H x W x D (IN): 1.7 x 17.1 x 18.1
• Has Firewall Built-in?: NO
• Network Device Form Factor: 1U
• Switch Hub Type: Specialty Switches
• Item Weight (LBS): 22
• Color - Generic: Grey
• EPEAT Level: Gold

Inputs/Outputs

• Number of Ports: 48
• NIC Speed: 10/25Gbps
• Network Connectors: SFP
• Wireless Network Compatibility: 802.11AC
