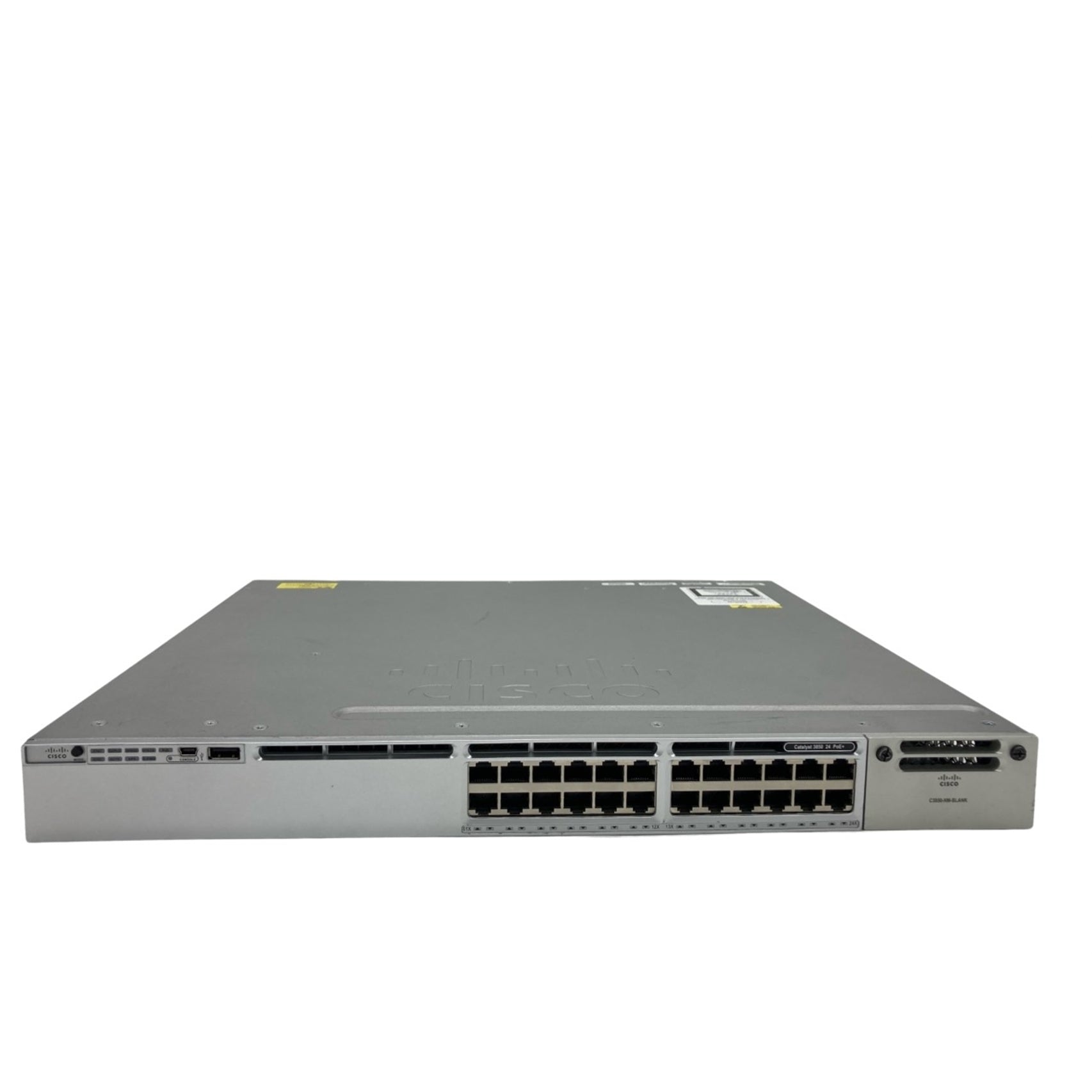

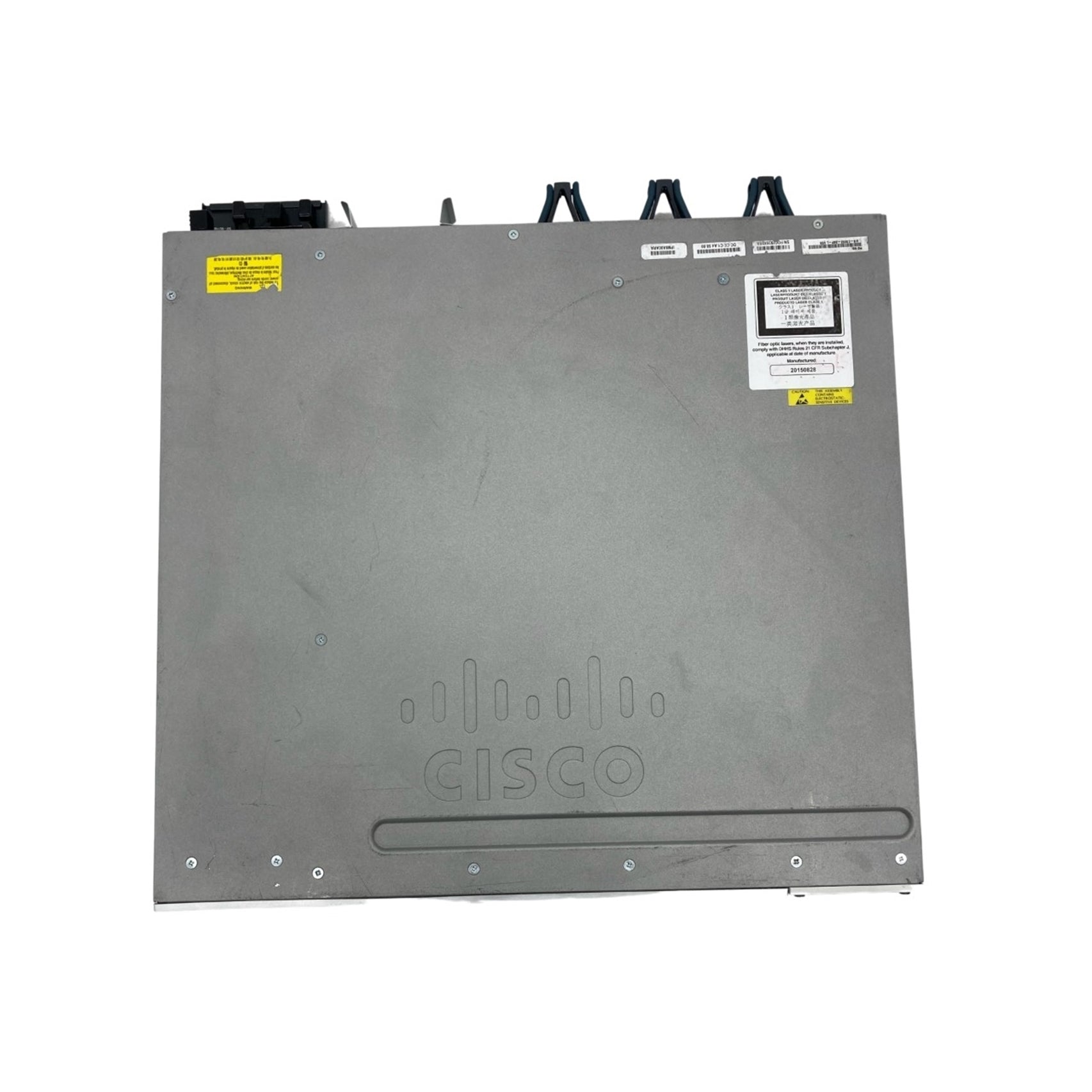

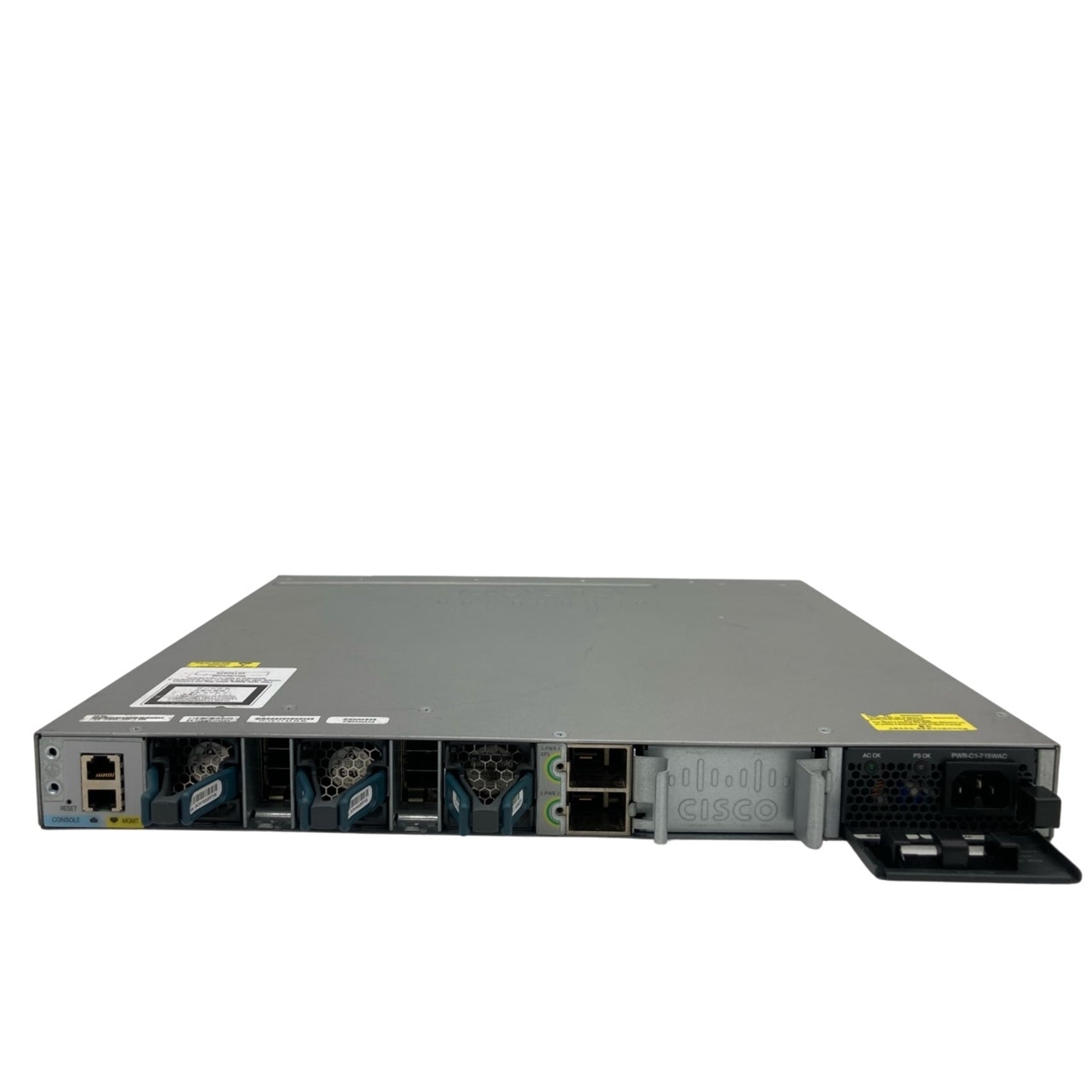

Cisco WS-C3850-24P-L Catalyst 24-Port PoE+ Switch (Used - Good)
Cisco WS-C3850-24P-L Catalyst 24-Port PoE+ Switch (Used - Good)
Cisco WS-C3850-24P-L Catalyst 24-Port PoE+ Switch (Used - Good)

Cisco WS-C3850-24P-L Catalyst 24-Port PoE+ Switch (Used - Good)

  • Save $5,905

Condition: Used - Good - Brown/White Box

Warranty Term: 30 Days
Warranty Provider: Distributor

Cisco WS-C3850-24P-L Catalyst 24-Port PoE+ Switch (Used - Good)

Item sold as pictured, in good, used working condition. Listing includes rack mount kit and AC power cable. WS-C3850-24P-L Overview Cisco Catalyst WS-C3850-24P-L is next generation stackable enterprise level switch and integrated with 24 Ethernet POE + ports with upgradeable LAN base IOS image. WS-C3850-24P-L is designed for access layer with 255 VLANs and IEEE802.3at POE+ standard supporting. WS-C3850-24P-L Specification • Model info: WS-C3850-24P-L • Enclosure type: Rack-mountable - 1U • Ports: 24 x 10/100/1000 (POE+) • Network management Interface: Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling; Management console port: RJ-45-to-DB9 cable for PC connections • Available PoE Power: 435W • Switching Capacity: 92Gbps • Maximum stacking number: up to 9 switches with same IOS feature set in same series • Stack Bandwidth: 480Gbps • Forwarding Performance: 68.4Mpps • FNF entries: 24,000 flows • Maximum VLANs IDs: 1,000 • MAC Address Table Size: 32K • CPU: Multicore CPU • RAM: 4 GB • Flash Memory: 2 GB • Number of AP per switch/stack: 100 • Number of wireless clients per switch/stack: 2000 • Total number of WLANs per switch: 64 • Wireless bandwidth per switch: up to 20Gbps • Supported Aironet AP series: 3600, 3500, 2600, 1600, 1260, 1140, 1040 • Console ports: USB (Type-B), Ethernet (RJ-45) • Expansion Slot(s): 1 network module slot and 1 power redundant slot • Network Modules Selection: C3850-NM-4-1G: 4 x 1G uplinks network module; C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module •Stacking cable: STACK-T1-50CM StackWise stacking cable with a 0.5 m length; STACK-T1-1M StackWise stacking cable with a 1.0 m length; STACK-T1-3M StackWise stacking cable with a 3.0 m length • Stack Power Cable (recommended): CAB-SPWR-30CM stack power cable with a 30CM length; CAB-SPWR-150CM stack power cable with a 150CM length • Power supply: PWR-C1-715WAC • Power Device: Power supply - redundant - plug-in module • Power Redundancy: optional • Voltage range (Auto): 100V-240V • Power Consumption of standalone(in Watts): 88.32 (max) • Width: 17.5 Inches (44.5 cm) • Depth: 17.7 Inches (44.5 Cm) • Height: 1.75 Inches (4.45 cm) • Weight: 16.3 Pounds (7.4Kg) • Rack Mounting Kit: optional • MTBF in hours: 269,450

Features:

  • • Ports: 24 x 10/100/1000 Ethernet ports
  • • Available POE Power: 435W
  • • Stack bandwidth: 480 Gpbs
  • • Switching Capacity: 92 Gpbs

Whats in the Box?

  • Cisco WS-C3850-24P-L Catalyst 24-Port PoE+ Switch
  • Rack Mount Kit
  • AC Power Cable

Specifications:

General Information

  • Color - Generic: Silver
  • Model Number: WS-C3850-24P-L
  • Item Dimensions - H x W x D (IN): 2 x 18 x 16
  • Has Firewall Built-in?: NO
  • Network Device Form Factor: 1U
  • Switch Hub Type: Not Applicable
  • Item Weight (LBS): 15
  • EPEAT Level: Not Applicable

Inputs/Outputs

  • Number of Ports: 24
  • NIC Speed: 10/100/1000Mbps
  • Network Connectors: RJ45
  • Wireless Network Compatibility: Not Applicable
