Condition: Refurbished - Brown/White Box

Warranty Term: 30 days
Warranty Provider: Distributor

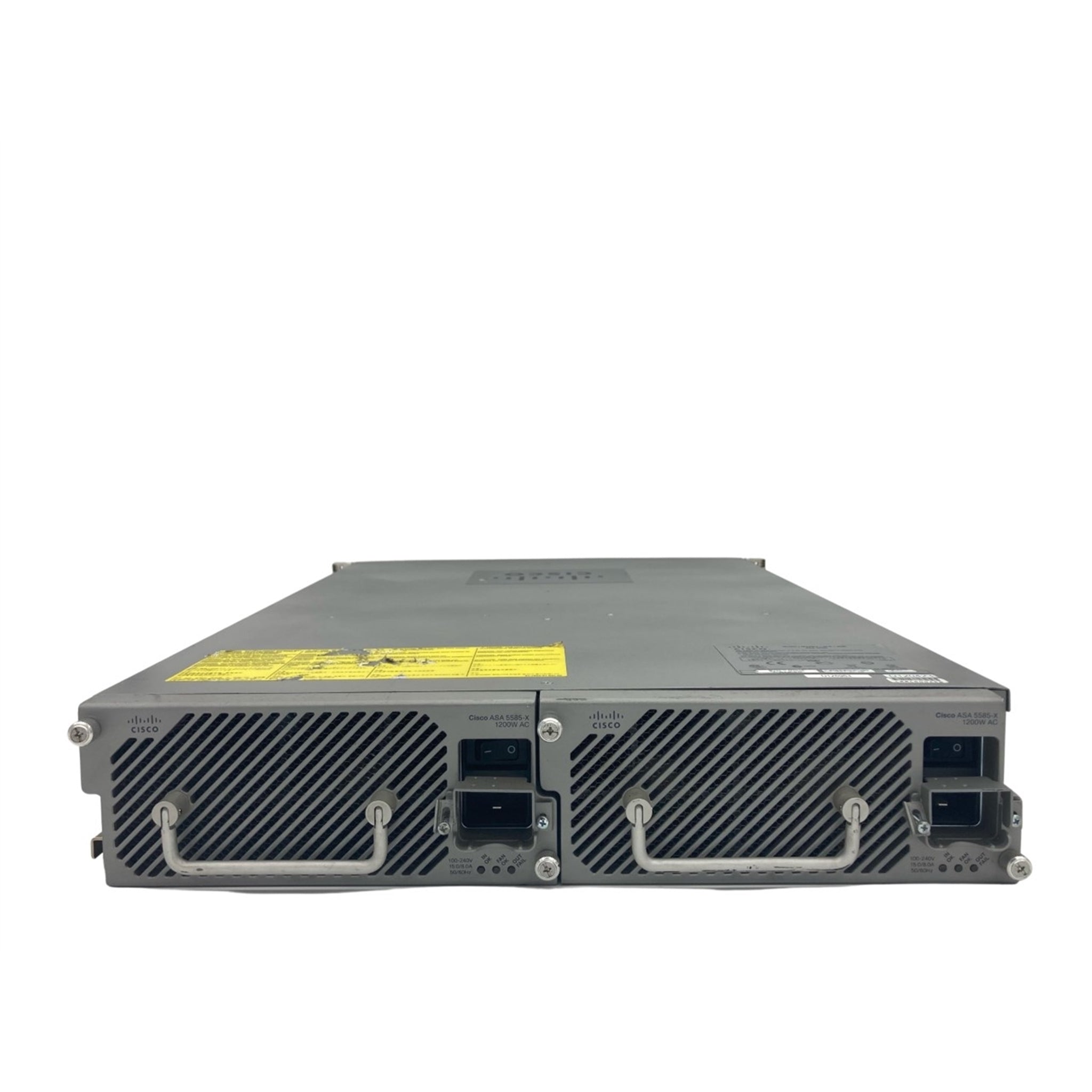

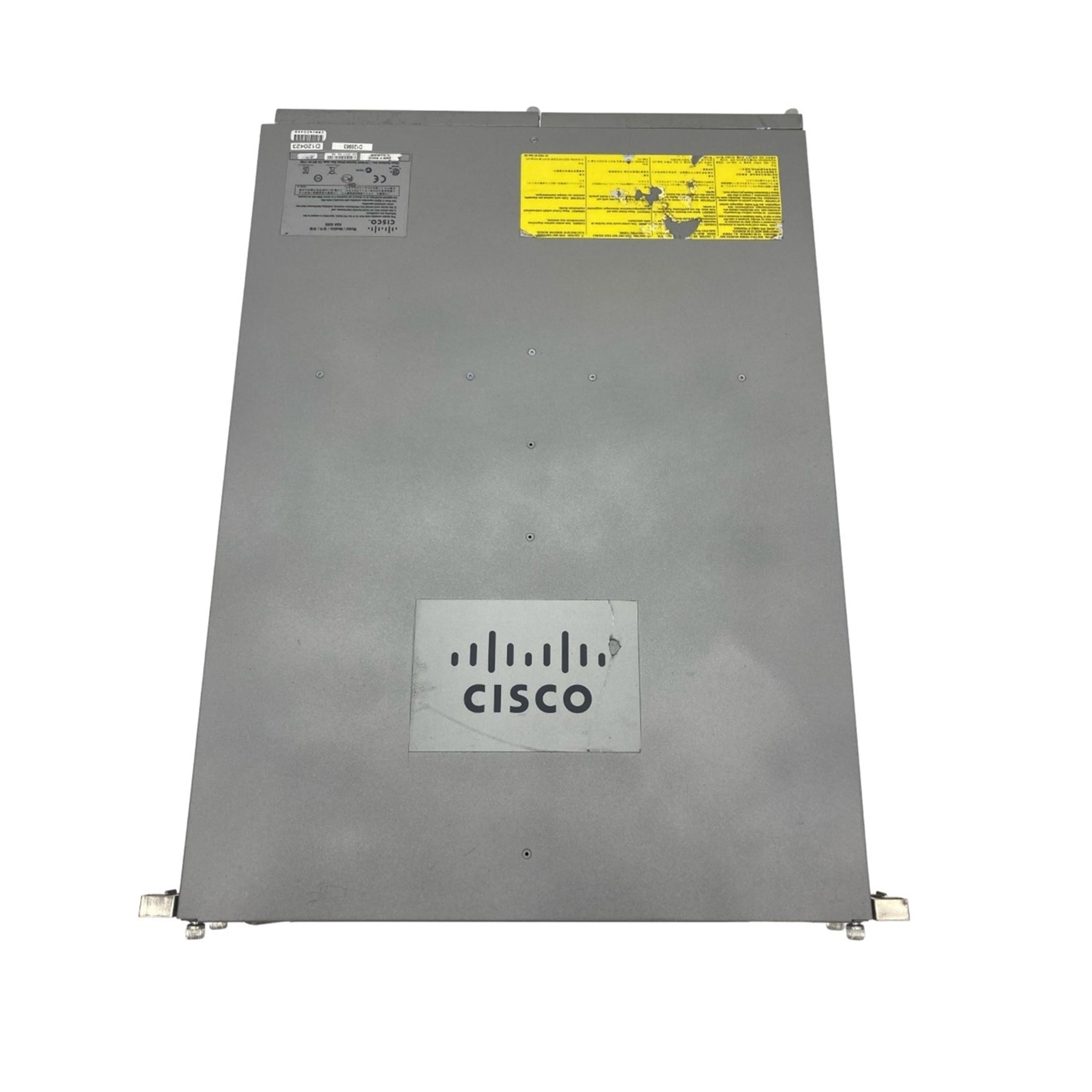

Cisco ASA5585-S20X-K9 Enterprise Firewall 2x AC Power Supplies (Refurbished)

Today’s enterprise networks struggle to keep up with a mobile workforce. Users expect on-demand access from their many devices, even as applications multiply and push performance levels. And of course security remains a priority. How do you scale and still preserve the integrity of the network? Start with the Cisco® ASA 5585-X Firewall, a compact yet high-density firewall that delivers tremendous scalability, performance, and security in a two-rack-unit (2RU) footprint. Using a single firewall blade, the Cisco ASA 5585-X meets the growing needs of dynamic organizations by providing eight times the performance density, very high VPN session counts, twice as many connections per second, and four times the connection capacity of any competitive firewall. Firewall Features Support for Layer 3 and Layer 4 stateful firewall inspection features, including access control and network address translation, enables organizations to keep existing stateful inspection policies that are essential for compliance regulations and securing critical data center resources. In addition to comprehensive stateful inspection capabilities, Layer 7 next-generation policies act intelligently on contextual information. Cisco AnyConnect® technology provides information on the type and location, and endpoint posture of a mobile device before it accesses the network, so that administrators can maintain high levels of network visibility, protection and control. Threat intelligence feeds from Cisco Collective Security Intelligence (CSI) use the global footprint of Cisco security deployments to analyze approximately one-third of the world’s Internet traffic for near-real-time protection from new and emerging threats. Flexible Deployment Options The Cisco ASA 5585-X supports two hardware blades in a single 2RU chassis. The bottom slot (slot 0) hosts the ASA stateful inspection firewall module, while the top slot (slot 1) can be used for adding up to two Cisco ASA5585-X I/O modules for high interface density for mission-critical data centers that require exceptional flexibility and security. Clustering Using Cisco ASA Software Release 9.0 and later, customers can combine up to 16 Cisco ASA 5585-X firewall modules in a single cluster for up to 640 Gbps of throughput, 2 million connections per second, and more than 100 million concurrent connections. This “pay as you grow” model enables organizations to purchase what they need today and dynamically add more when their performance needs grow. To protect high-performance data centers from internal and external threats, the cluster can be augmented by adding IPS modules. Cisco ASA software clustering delivers a consistent scaling factor, irrespective of the number of units in the cluster, for a linear and predictable increase in performance. Complexity is reduced, as no changes are required to existing Layer 2 and Layer 3 networks. Support for data center designs based on the Cisco Catalyst® 6500 Series Virtual Switching System (VSS) and the Cisco Nexus virtual PortChannel (vPC) as well as the Link Aggregation Control Protocol (LACP) provides high availability (HA) with better network integration. For operational efficiency, Cisco ASA clusters are easy to manage and troubleshoot as a single entity. Policies pushed to the master node are replicated across all the units within the cluster. The health, performance, and capacity statistics of the entire cluster, as well as individual units within the cluster, can be assessed from a single management console. Hitless software upgrades are supported for ease of device updates. Clustering supports HA in both active/active and active/passive modes. All units in the cluster actively pass traffic, and all connection information is replicated to at least one other unit in the cluster to support N+1 HA. In addition, single and multiple contexts are supported, along with routed and transparent modes. A single configuration is maintained across all units in the cluster using automatic configuration sync. Clusterwide statistics are provided to track resource usage. Cisco TrustSec Integration Using Cisco ASA Software Release 9.0 and later, the Cisco ASA 5585-X provides context awareness through the integration of identity-based firewall security and Cisco TrustSec® security group tags for enhanced visibility and control. Identity-based firewall security provides more flexible access control to enforce policies based on user and group identities and the point of access. Administrators can write policies that correspond to business rules, a process that increases security, enhances ease of use, and requires fewer policies to manage. Similarly, Cisco TrustSec integration enables security group tags to be embedded into the network, providing administrators with the ability to develop and enforce better, more precise policies. Cut Costs While Improving Performance and Security The Cisco ASA 5585-X Next-Generation Firewall delivers superior scalability, performance, and security to handle high data volumes without sacrificing performance. Most firewalls require up to 16RUs and 5100 watts to scale to the level of performance that the Cisco ASA 5585-X achieves with only 2RUs and 785 watts. This performance helps enterprises meet the increasing demands for network connectivity without the need to invest in additional data center space and incur the corresponding maintenance costs. Based on tests conducted by Cisco, the Cisco ASA 5585-X significantly reduces initial procurement costs by 80 percent, power consumption costs by 85 percent, and rack space requirements by 88 percent in addition to significant reductions in overall integration and management complexity and costs. In addition, you can install up to two firewall modules in a single Cisco ASA 5585-X chassis, providing scalability to 80 Gbps.

Features:

• Stateful inspection firewall throughput (maximum): 10 Gbps
• Firewall connections per second: 125,000
• Packets (64 byte) per second: 3,000,000
• Maximum 3DES/AES IPsec VPN throughput: 2 Gbps

Whats in the Box?

• Cisco ASA5585-S20X-K9 Enterprise Firewall 2x AC Power Supplies

Specifications:

General Information

• Plug and Play Operation: YES
• EPEAT Level: Not Applicable
• Energy Star Compliant: NO

Physical Features

• Color (Generic): Silver
• Item Dimensions (H x W x D Inches): 4 x 19 x 27
• Item Weight (LBS): 55

Networking

• Port Type: RJ-45
• Encryption Type: Other
• Firewall Type: Other

Inputs/Outputs

• Total LAN 10/100 Ports: 0
• Total LAN 10/100/1000 Ports: 8
• Total WAN 10/100 Ports: 0
• Total WAN 10/100/1000 Ports: 0
• Total USB Printer Server Ports: 0
